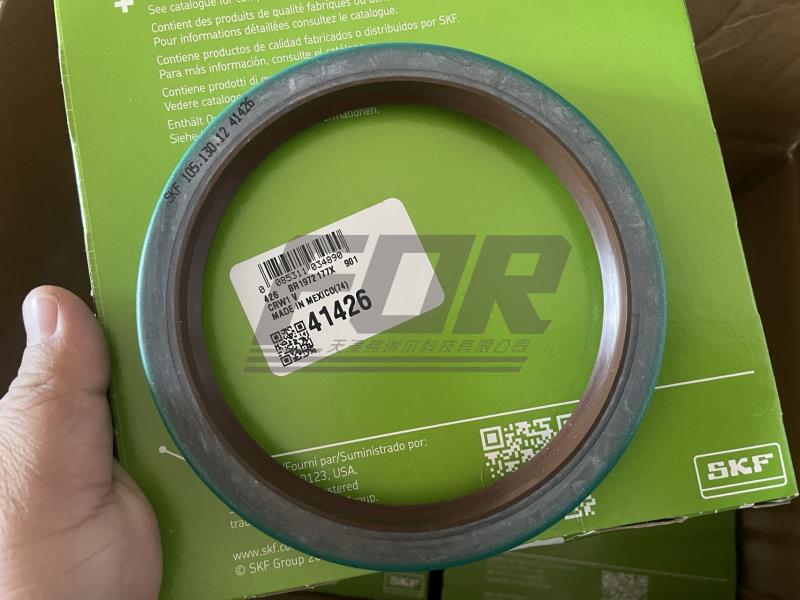

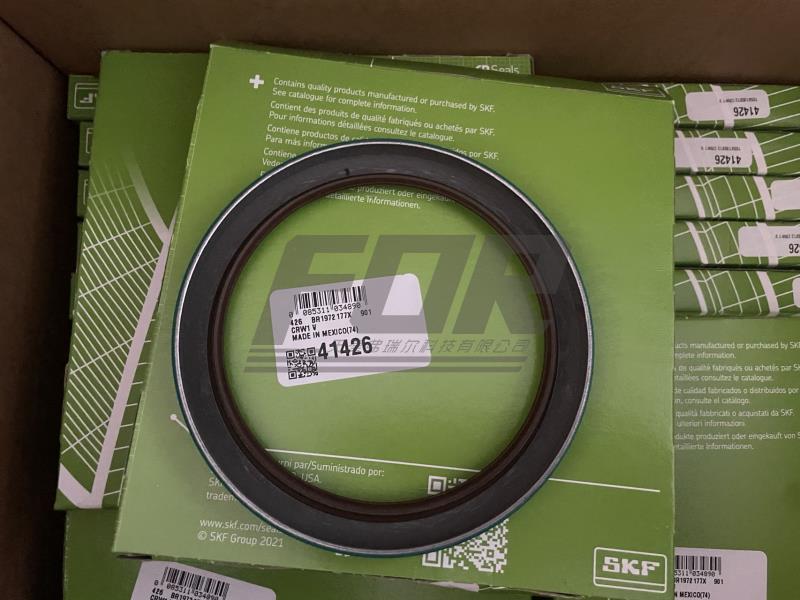

Oil Seal, 105 x 130 x 12, HMSA10 V

Product No.：2025517195041
Online Inquiry

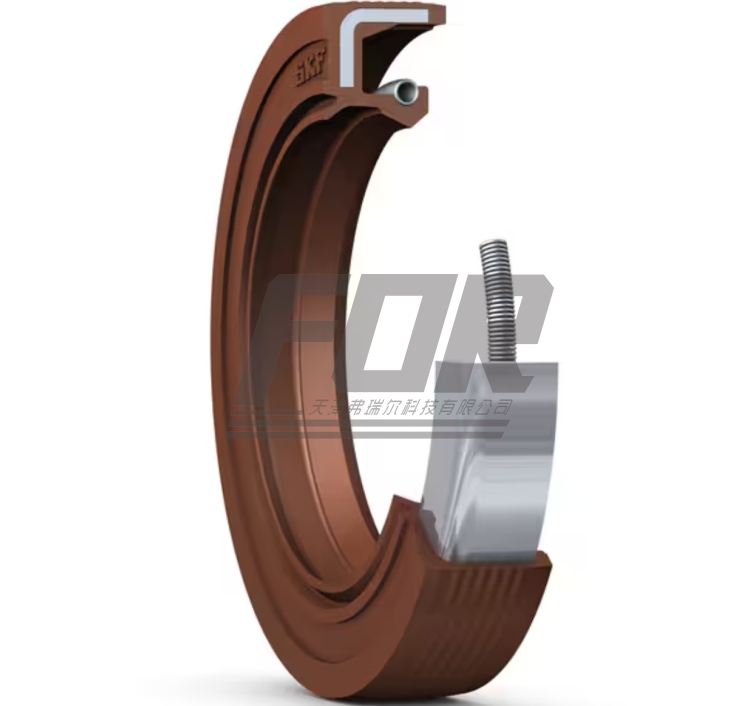

Radial shaft seal with rubber outside diameter and single sealing lip, for oil or grease

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.

High pumping rate
Higher contamination exclusion with dust lip
With garter spring
Accommodate misalignment

Dimensions

Shaft diameter	105 mm
Housing bore diameter	130 mm
Seal width	12 mm

Performance

Limiting speed	6 096 r/min
Maximum operating temperature	200 °C
Minimum operating temperature	-25 °C
Permissible circumferential speed	33.5 m/s
Rotational speed	6 096 r/min
