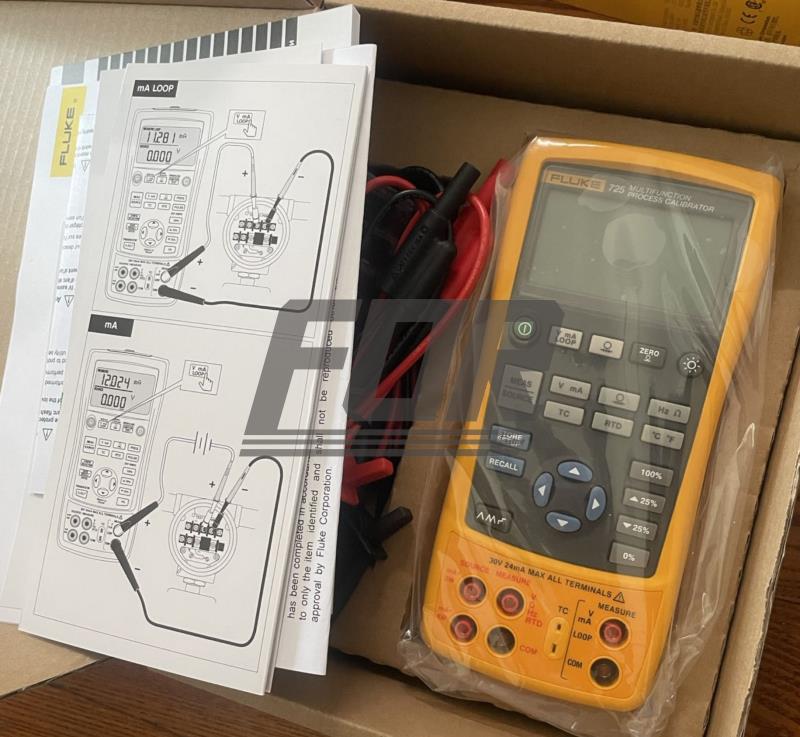

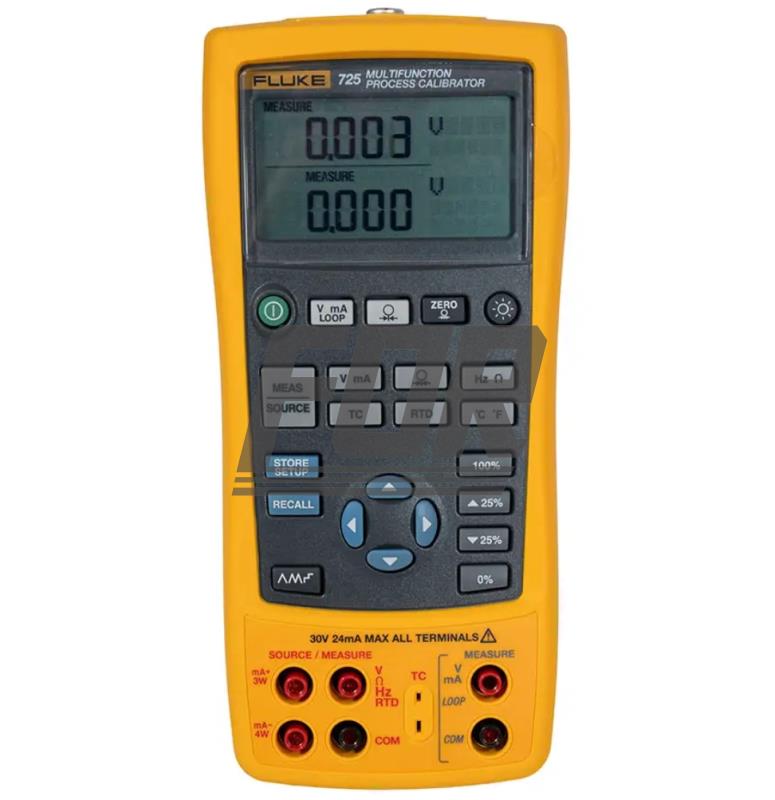

With the Fluke 725 Multifunction Process Calibrator you can easily source and measure almost any process parameter and test almost any process device. Measure and source mA, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules.

From the moment you pick it up, the Fluke 725 is ready to perform as a powerful, yet easy-to-use field calibrator. Its simple controls, without menus, make operation easy and the backlit display provides better visibility in poor light. It features a small, streamline shape and a rugged, reliable design that make it ideal for standing up to harsh field conditions.

Fluke 725/FPC Offers

Delivering outstanding performance, this multifunction process calibrator presents durability and reliability. Dust and splash resistant, the calibrator features a removable battery door for quick battery changes. In addition, this compact calibrator stores and recalls frequently used calibration setups and offers an easy-to-use push-button interface.

Features

• Powerful, easy-to-use field calibrator
• Small, streamlined shape makes it easy to carry
• Rugged, reliable design stands up to field use
• Easy to read measure/source screen lets you view input and output simultaneously
• Measures volts, mA, pressure, RTDs, thermocouples, frequency, and ohms to test sensors and transmitters
• Sources/simulates volts DC, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
• Easy to read measure/source screen displays input and output simultaneously
• Powers transmitters during test using loop supply with simultaneous mA measurement
• Handles fast pulsed RTD transmitters and PLCs, with pulses as short as 10 ms
• Provides a backlit display to provide better visibility in poor light
• Features small, streamlined shape, and rugged, reliable design that stands up to field use
• Sources mA with simultaneous pressure measurement to conduct valve and I/P tests
• Supports flow meter testing with frequency and CPM functions
• Performs fast linearity tests with auto-step and auto-ramp features
• Backlight lets you work in poor light
• Store frequently-used test setups for later use

Applications

• Electrical
• Troubleshooting
• In the field

Versatile troubleshooting tool

Power transmitters during test using the loop supply with simultaneous mA measurement so you can test a transmitter out of circuit and better isolate problems. The 725 can also test a variety of fast pulsed RTD transmitters and PLCs (Programmable logic controllers), with pulses as short as 10 ms.

Source mA with simultaneous pressure measurement to conduct valve and I/P (Input current/Output pressure) tests in a single device. You can also test flow meters with frequency and CPM (counts per minute) functions and perform fast linearity tests with auto-step and auto-ramp features so you can quickly verify the mA signal at different output levels.

For more precision, pulse sourcing, pulse counting (totalizing) consider the Fluke 726 Precision Multifunction Calibrator.

For documenting and HART communication built into your calibrator, consider the Fluke 754 Documenting Process Calibrator with HART.
