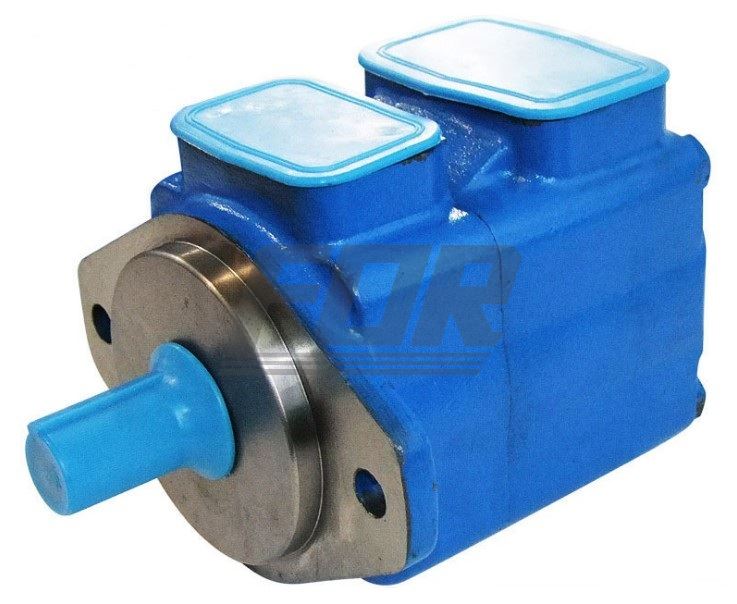

Vickers 35V25A-1A22R Vane pump
- Product No.：2020617164030
| Feature | Code | Description |
|---|---|---|
| SEALS | _ | STANDARD |
| SERIES | 35V | 81 TO 121 CM3/R (4.9 TO 7.4 IN3/R) |
| THRUDRIVE | _ | NONE |
| PILOT DESIGNATION | _ | STANDARD PILOT |
| GEOMETRIC DISPLACEMENT | 25 | 25 USGPM |
| PORT CONNECTIONS | A | SAE 4 BOLT FLANGE INLET, SAE 4 BOLT FLANGE OUTLET |
| PORT CONNECTION MODIFIER | _ | STANDARD - INCH THREAD PORT CONNECTION (4 BOLT FLANGE) |
| MOUNTING | _ | FLANGE MOUNTING |
| SHAFT | -1 | STRAIGHT KEYED |
| PORT ORIENTATION | A | OPPOSITE INLET PORT, AS VIEWED FROM COVER END OF PUMP |
| THRU-DRIVE ADAPTER ORIENTATION | _ | NO THRU DRIVE |
| DESIGN NUMBER | 22 | 22 |
| CODE | _ | NOT APPLICABLE |
| ROTATION | R | RIGHT HAND FOR CLOCKWISE, AS VIEWED FROM SHAFT END OF PUMP |
| SPECIAL FEATURES | _ | NO SPECIAL FEATURES |
| 35V25A-1A22R | 35V25A-1A22L | 35V-25A-1A-22R | 35V-25A-1A-22L |
| 35V30A-1A22R | 35V30A-1A22L | 35V-30A-1A-22R | 35V-30A-1A-22L |
| 35V35A-1A22R | 35V35A-1A22L | 35V-35A-1A-22R | 35V-35A-1A-22L |
| 35V38A-1A22R | 35V38A-1A22L | 35V-38A-1A-22R | 35V-38A-1A-22L |
| 35V25A-1B22R | 35V25A-1B22L | 35V-25A-1B-22R | 35V-25A-1B-22L |
| 35V30A-1B22R | 35V30A-1B22L | 35V-30A-1B-22R | 35V-30A-1B-22L |
| 35V35A-1B22R | 35V35A-1B22L | 35V-35A-1B-22R | 35V-35A-1B-22L |
| 35V38A-1B22R | 35V38A-1B22L | 35V-38A-1B-22R | 35V-38A-1B-22L |
| 35V25A-1C22R | 35V25A-1C22L | 35V-25A-1C-22R | 35V-25A-1C-22L |
| 35V30A-1C22R | 35V30A-1C22L | 35V-30A-1C-22R | 35V-30A-1C-22L |
| 35V35A-1C22R | 35V35A-1C22L | 35V-35A-1C-22R | 35V-35A-1C-22L |
| 35V38A-1C22R | 35V38A-1C22L | 35V-38A-1C-22R | 35V-38A-1C-22L |
| 35V25A-1D22R | 35V25A-1D22L | 35V-25A-1D-22R | 35V-25A-1D-22L |
| 35V30A-1D22R | 35V30A-1D22L | 35V-30A-1D-22R | 35V-30A-1D-22L |
| 35V35A-1D22R | 35V35A-1D22L | 35V-35A-1D-22R | 35V-35A-1D-22L |
| 35V38A-1D22R | 35V38A-1D22L | 35V-38A-1D-22R | 35V-38A-1D-22L |
| 35V25A-86A22R | 35V25A-86A22L | 35V-25A-86A-22R | 35V-25A-86A-22L |
| 35V30A-86A22R | 35V30A-86A22L | 35V-30A-86A-22R | 35V-30A-86A-22L |
| 35V35A-86A22R | 35V35A-86A22L | 35V-35A-86A-22R | 35V-35A-86A-22L |
| 35V38A-86A22R | 35V38A-86A22L | 35V-38A-86A-22R | 35V-38A-86A-22L |
| 35V25A-86B22R | 35V25A-86B22L | 35V-25A-86B-22R | 35V-25A-86B-22L |
| 35V30A-86B22R | 35V30A-86B22L | 35V-30A-86B-22R | 35V-30A-86B-22L |
| 35V35A-86B22R | 35V35A-86B22L | 35V-35A-86B-22R | 35V-35A-86B-22L |
