  • high pressure manifold BW stainless steel weld outlet
  • high pressure manifold BW stainless steel weld outlet
  • high pressure manifold BW stainless steel weld outlet
  • high pressure manifold BW stainless steel weld outlet
high pressure manifold BW stainless steel weld outlet high pressure manifold BW stainless steel weld outlet high pressure manifold BW stainless steel weld outlet high pressure manifold BW stainless steel weld outlet

high pressure manifold BW stainless steel weld outlet


 Products material
ASTM
304、304L、316、316L、317、321、A234 WPB、A105、A106B ...
JIS
SUS304、SUS304L、SUS316、SUS316L...
DIN
1.4301、1.4306、1.4401、1.4435、1.4571...
Production Standards
ASME
ASME B16.9/B16.11/B16.5/B16.47、MSS SP-43/83/95/97/114
JIS
JIS B2309/2220/2311/2312/2313、BS 3293/3799
DIN
DIN 2533/2576/2605/2615/2616/2617/2631/2633
EN
EN 1092-1、GOST 12821-80/12822-80 ...
Size Range
Butt welding pipe fittings:
1/2” ~ 80” Wall thickness: SCH5S ~ SCH160,XXS
Forged flanges:
1/2” ~ 60” Pressure rating: 150LB ~ 2500LB
Cast pipe fittings:
1/8” ~ 4” Pressure rating: 150LB
Forged pipe fittings:
1/8” ~ 4” Pressure rating: 1000LB、 2000LB、3000LB、6000LB、9000LB

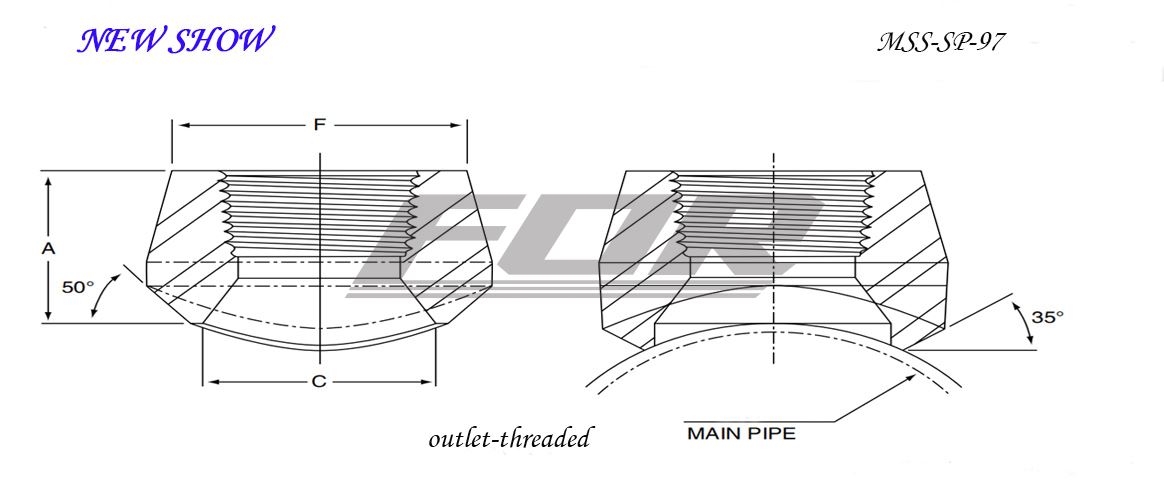

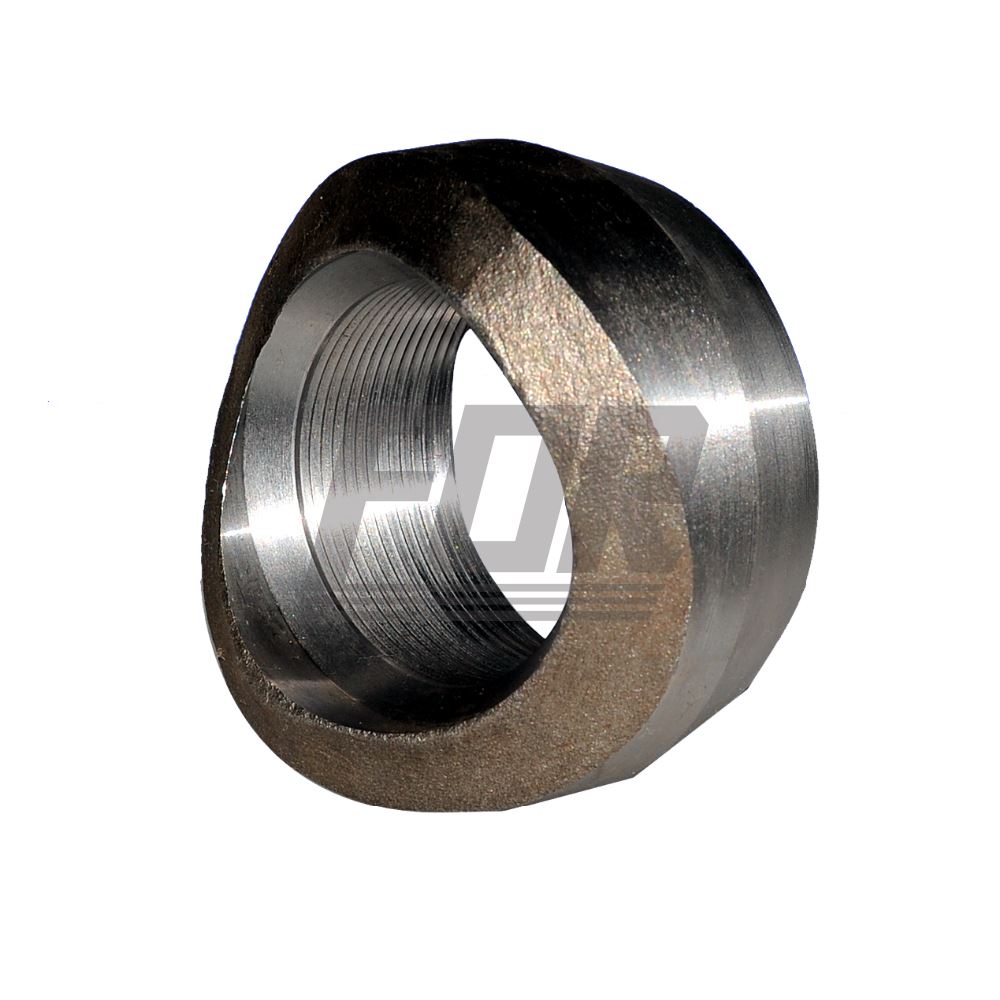

Thredolet.

size ： 1/8''-4''
pressure ：3000lb、6000lb
thread ： ASME B1.20.1
schedule： STD/xs、S160/xxs
standard ：ASME B16.11
material ：SS/CS
used ： water、oil、gas

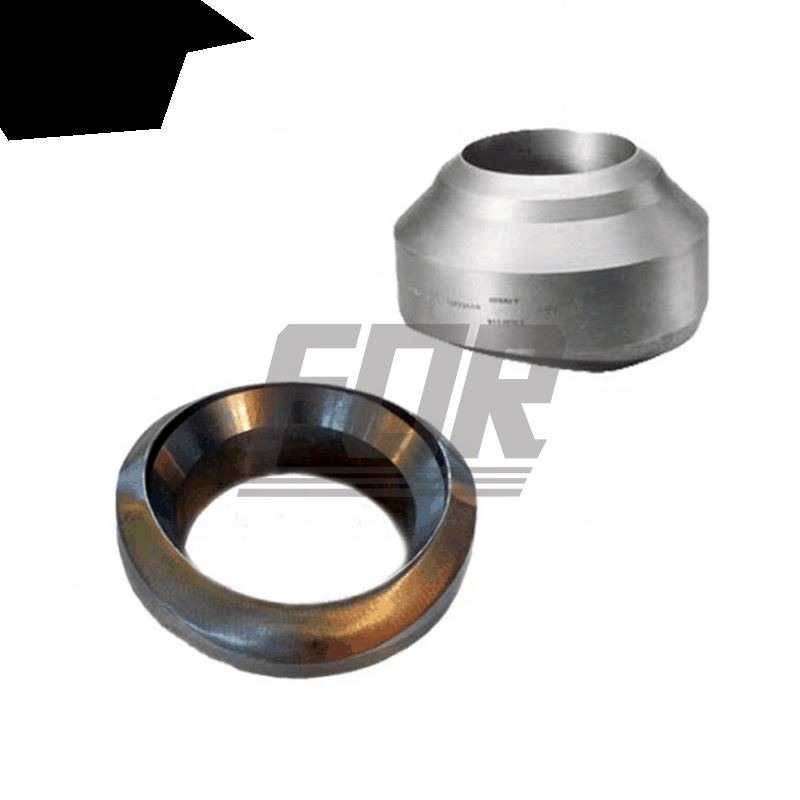

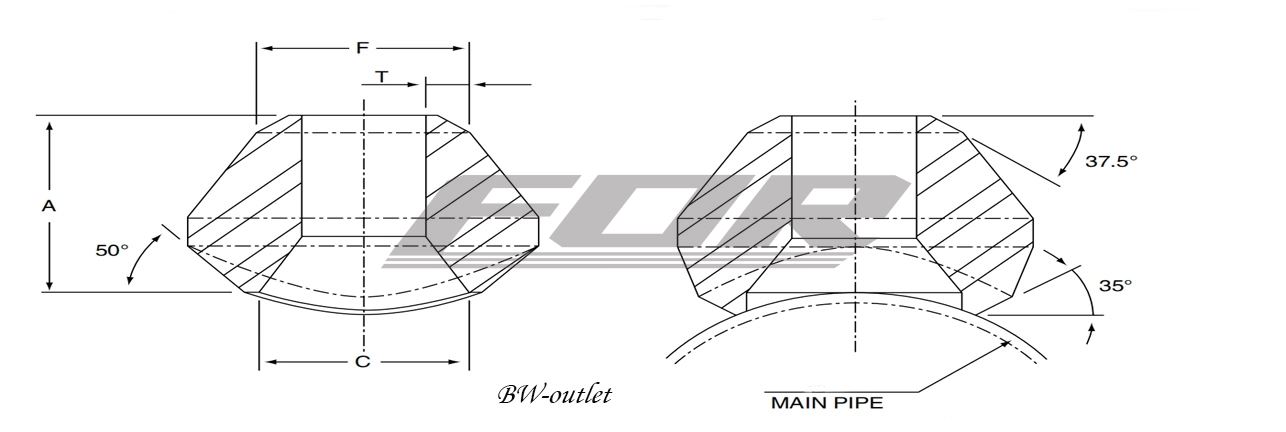

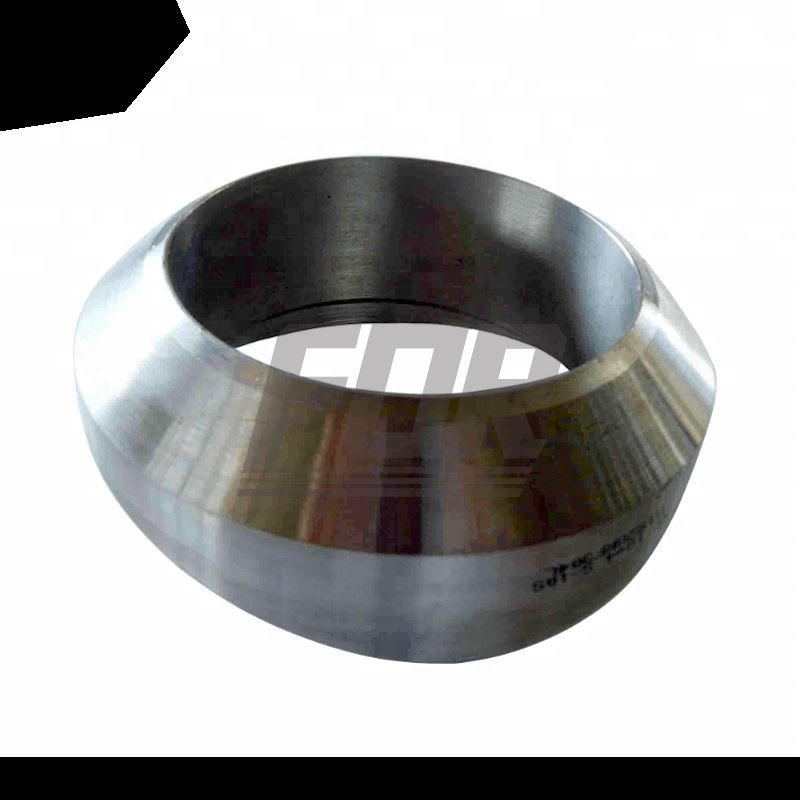

Weldolet.

size ： 1/8''-24''
pressure ：3000lb、6000lb
weld bevle： ASME B16.25
schedule： STD - SCH160
standard ：ASME B16.11
material ：SS/CS
used ： water、oil、gas

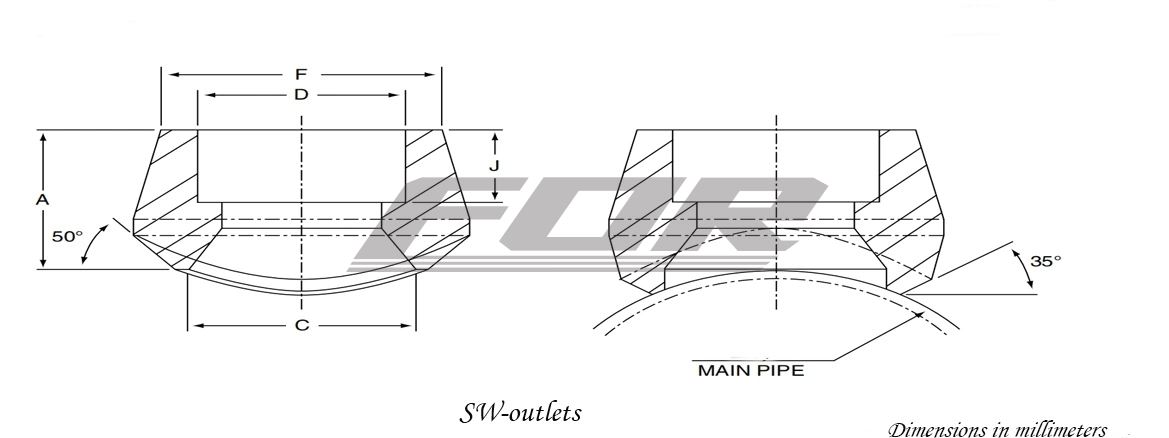

Sockolet.

size ： 1/8''-4''
pressure ：3000lb、6000lb
schedule： STD/xs、S160/xxs
standard ：ASME B16.11
material ：SS/CS
used ： water、oil、gas

Previous Product：Duplex 2205 stainless steel Piping Next Product：Stainless Steel Tube Cutting Solution LEFON Orbital Pipe Saw
