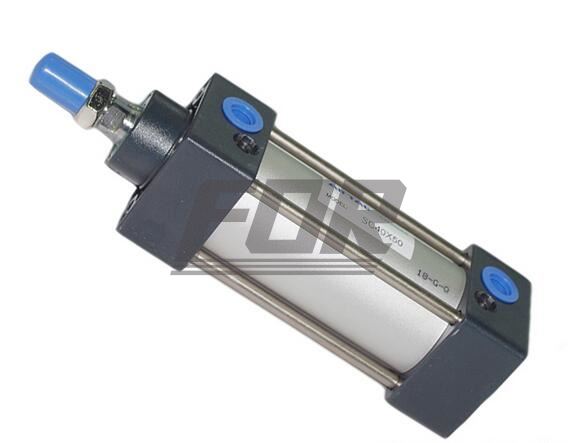

Bore size:

                 32

                 40

                 50

                 63

                 80

                 100



                 Acting type:

                 Double Acting



                 Fluid:


                 Air(to be filtered by 40μm filter element)



                 Mounting Type:


                 SC

                 Basic  FA  FB  CA  CB  LB  TC  TCM1




                 SCD、SCJ

                 Basic  FA  LB  TC  TCM1



                 Operating pressure:

                 0.10~1.0MPa(15~145psi)(1.0~10.0bar)



                 Proof pressure:

                 1.5MPa（215psi）(15bar)



                 Temperature（℃）:

                 -20~80



                 Speed rang (mm/s):

                 30~800



                 Stroke tolerance：

                 0~250(0~+0.1)  251~1000(0~+1.4)   1001~1500(0~+1.8)



                 Cushion Type:

                 Variable Cushion




                 Adjustable Cushion Stroke mm:

                 21

                 28

                 29



                 Port Size：

                 PT1/8

                 PT1/4

                 PT3/8

                 PT1/2



     ① PT thread, NPT thread and G thread are available.

Stroke：




                 Bore size(mm)

                 Standard Stroke(mm)

                 Max Stroke(mm)

                 Allow Stroke(mm)



                 32

                 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500

                 1000

                 2000



                 40

                 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000

                 1200

                 2000



                 50

                 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000

                 1200

                 2000



                 63

                 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000

                 1500

                 2000



                 80

                 25 50 75 80 100 125 150 160 175 200 250 300 350 400 45


0 500 600 700 800 900 1000

                 1500

                 2000



                 100

                 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000

                 1500

                 2000
